A battery for a rider charged during traveling
The Wheelswing generates the power during riding.
This power can charge various accessories such as smartphones and accessories for a bicycle etc. through a USB cable.
Contactless
Driving System
Self-Power
Generation
Built-in
Battery
USB
Charging Method
Simple
Installation
Universal
Bracket
Hybrid
Method
Light
Pedaling
Reliability
Test
Living Waterproofing
Design
Wadiz Crowd Funding
Excellence verified through the global stage and crowd funding
Accumulated Funding Amount
$17,430
Accumulated Supporters
197 people
POINT 1
Contactless Driving System
The first one in the world! A unique one in the world!
It is a contactless bicycle generator that is free to generate and charge the power with driving by a magnetic field
(It generates the power without friction by applying the principle of the Arago’s disc.)
POINT 2
Self-Power Generation
You don’t have to check the residual quantity of the battery
all the time. It is available without worries even in the
dangerous situation that headlights and taillights that are
essential items for a riding at night are discharged.
POINT 3
Built-in Battery
There is a built-in battery of 1,300mAh so you can charge it by using the stored power even in the state that a bicycle is halted.
(Since it is the data as a result of indoor trials of traveling, it may vary depending on types of RM of a bicycle and the traveling conditions.)
POINT 3
USB Charging Method
It is charged easily and conveniently through a connection of a USB cable.
Smart Phone
Auxiliry Battery
Light
GPS
BT Speaker
Wireless Earphone
Action camera
Cycling computer
Navigation
POINT 4
How to Install
You can install it by yourself without any assistance from an expert.
The bracket is assembled by combining the rubber pad and the crescent depending on the thickness of a fork and a seat stay.
You need to check the installation position by using the installation guide.
The bracket is inserted and fixed by bolts and nuts.
(Tighten it loosely to adjust the position.)
The body is inserted into a bracket and fixed by bolts and nuts.
After adjusting the position of installation by using the filler gauge, fix the bracket firmly.
Installation completed
Go to see how to install in detail
POINT 5

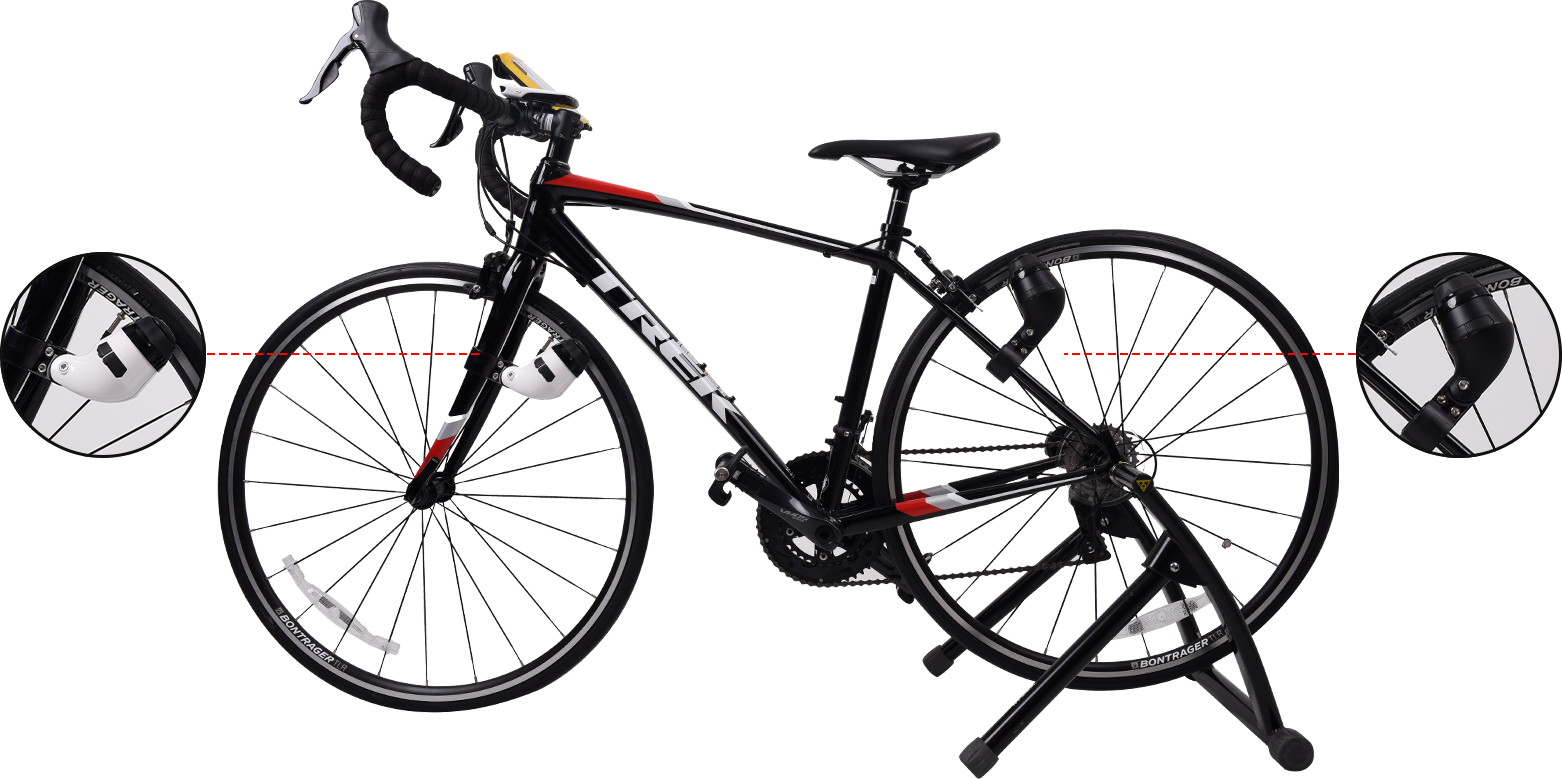

Universal Bracket

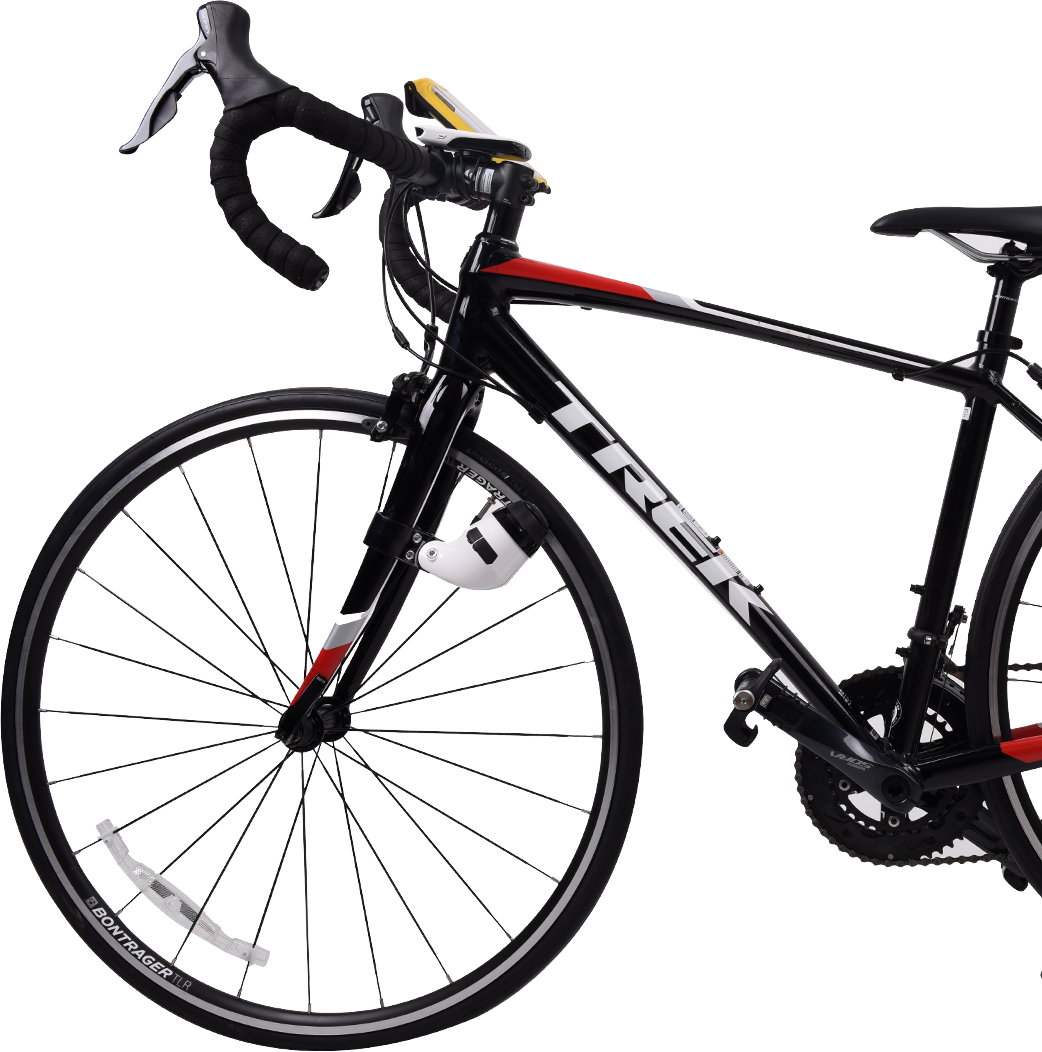

It is available for installation at anywhere such as the fork of the front wheel
/ the seat stay on the rear wheel
POINT 6
Hybrid Method
Transformed to a contact type once only the rubber ring is replaced!
POINT 7
Light Pedaling
A light and soft sense of driving like a feather!
POINT 8
Reliability Test
A strict test for safety!
POINT 9
Living Waterproofing Design
For even raining days with IPX5 waterproofing!
Comparison of Products
|
Non-Contact |
Contact |
|
|
|
VOLT1 plus-NCD |
VOLT plus-NCB |
VOLT1-CD |
VOLT1-CB |
Dimension |
158 X 156 X 70mm |
158 X 156 X 70mm |
158 X 156 X 70mm |
158 X 156 X 70mm |
Weight |
400g |
424g |
332g |
357g |
Material |
PC, Rubber, Silicone etc. |
PC, Rubber, Silicone etc. |
PC, Rubber, Silicone etc. |
PC, Rubber, Silicone etc. |
Capacity |
5V, 1A |
5V, 1A |
5V, 1A |
5V, 1A |
Battery |
|
Lithium Battery (Negotiable) |
|
Lithium Battery (Negotiable) |
FAQ
Q
Common Thing
Is it an electric bicycle?
No, it isn’t. This product is a bicycle generator to gain the power by being installed on a bicycle.
Q
Common Thing
Is it possible to charge the battery of an electric bicycle?
Since the voltage and the current are not appropriate, it is not possible to charge with our generator for now.
Aside from an electric bicycle, you can’t charge any product that has different voltage and current.
Q
VOLT1 plus-NCB
Is it available for any type of a bicycle?
The contactless generator is available for the rim brake bicycle and the spinning/health bicycle.
We recommend our contact typed bicycle generator to those who have a carbon rim, a steel rim, a disc brake bicycle, a minivelo bike and a folding bike.
Q
Common Thing
Can I purchase the components again?
Q
Common Thing
Aside from it, I have other inquiries.
Please leave your inquiries at ‘CONTACT’ at the bottom of the main website or contact us at service@wus.co.kr or +82-53-213-8802
